Gantt Control Add-in for Business Central with AL API - release 8.4

Posted by Dieter Temme on May 6, 2025 1:57:44 PM

We just released version 8.4 of the Visual Scheduling Add-in Developer Toolbox  (VSADT). The VSADT with AL-API lets you develop a customized planning board for your specific industry solution within Microsoft Dynamics 365 Business Central. This minor release contains the following enhancements and improvements:



Visualization of Baseline Constraint Dates

It is now possible to display release date and due dates for the baseline of activities. They get visible by showing symbols besides the baseline bar below the main activity bar in the activities view. By default, the symbols used are the same as the ones for displaying the release and due dates but can be changed. If the default diamond symbol is used, it inherits the color of the baseline bar, but that can be changed as well.



Visual Scheduling Add-in Developer Toolbox with new features: visualization of baseline constraint dates

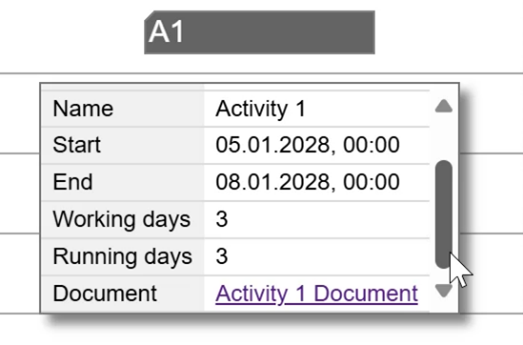

Tooltips with Interactive Content

Tooltips optionally now can be entered with the pointer and therefore can be used interactively without causing the tooltip to disappear. This interactivity is enabled by the new IsInteractive property on TooltipTemplate objects



Visual Scheduling Add-in Developer Toolbox with new features: tooltip with interactive content

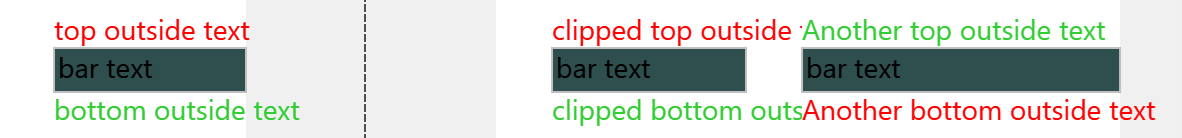

Outside Texts also on Allocation Bars

For greater flexibility in labeling allocation bars, it is now possible to place texts outside the bars, as already known for activity bars. These texts can be positioned above and below the bar by using the new properties BarBottomOutsideText and BarTopOutsideText for Allocation objects. The text is automatically clipped at the date where another allocation bar starts in the same horizontal position. To maintain readability against the background of the diagram, you can customize their color using the properties BarTopOutsideTextColor and BarBottomOutsideTextColor.



outside texVisual Scheduling Add-in Developer Toolbox with new features: outside texts also on allocation bars





Additional Properties with Modifier Keys in Events

When an application wants to modify its handling of a click or a drag&drop operation, the new properties PointerType, AltKey, CtrlKey, MetaKey, and ShiftKey enable this. They are provided with the events OnClicked, OnDoubleClicked, OnDragEnd, and OnDrop. They are taken from the original browser’s DOM event object if available.



Miscellaneous



Disabling Drag&Drop

It is now possible to disable drag&drop functionality separately for rows and bars. Until now, this could be done by the setting Editable only for both together.



Coloring of Time Area Background

You can now easily synchronize the background color of the time area with that of the table. To support this, a new property TableColorVisibleInTimeArea has been introduced for Activity, Resource, and Skill objects. This enhances visual consistency across the diagram.



Easier and Faster Removal of Objects

The new method RemoveAllOfTypes allows the removal of all objects of multiple types in one call by passing an array of object types. VSADT now automatically optimizes the removal sequence internally to achieve maximum performance.



Displaying Free Capacity on Curve Tooltips

In addition to showing capacity and load values using tooltip templates on curve tooltips, you can now display the available free capacity as well. This is done by including the keyword #FreeCapacity in your tooltip definition.



Simplified Access to Overflowing Symbols in the Symbol Column

Previously, when a row’s symbol column contained more symbols than could fit, users had to click the “…” icon to view them. Now, hovering the mouse over the symbol column is sufficient to reveal all hidden symbols.



Graphics and Semantics of Collapse and Expand Button

The visual appearance of collapse and expand buttons in the table rows has been slightly adjusted for better clarity. This is especially an improvement for the buttons for allocation rows, that showed a different semantics than the other buttons in the past. Now they behave identically.



Performance Enhancements

To improve loading speed, the internal processing of calendar and period highlighter data is now deferred until these elements become visible on the screen. This results in more responsive initial rendering, especially in large datasets.
