Gantt Chart Best Practice: Integrate a Shift Calendar into Timescale

Posted by Christin Scheewe on Sep 29, 2014 3:30:00 PM

The timescale is a key feature of a Gantt chart since this visualization technique focuses time-related planning data. In some cases however, planners have to view shifts and therefore need time units other than hours and/or minutes. Moreover, the respective scheduling applications require that the shifts are shown directly in the timescale. In this blog post we describe in form of a Gantt chart best practice sample how to use the “Shift Calendar” function of  VARCHART XGantt  to create a timescale with integrated shift visualization.

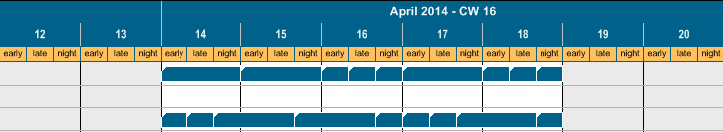

Shift Calendar in Timescale in Gantt Chart



Step-by-Step Guide

VARCHART XGantt is a winforms control that offers powerful functions to create individual, interactive Gantt charts for planning and scheduling applications. With few steps the shift calendar can be visually integrated in the timescale.

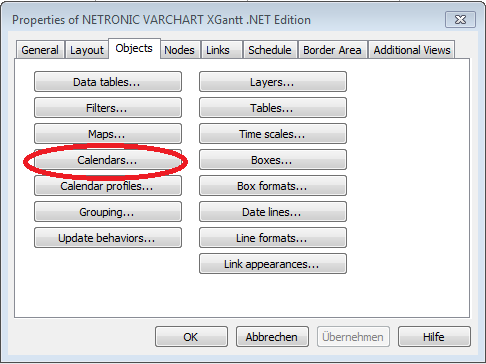

1. Click the Calendars… button on the VARCHART XGantt property pages to open the Specify Calendars dialog where you can add a new calendar of the type “Shift calendar”.

VARCHART XGantt Property Calendar

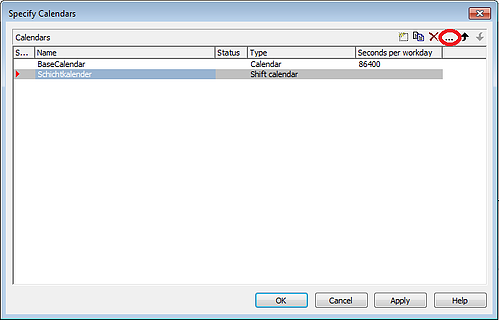

2. Click in the dialog (marked with red) to open the Administrate Intervals dialog.

VARCHART XGantt Property Shift Calendar

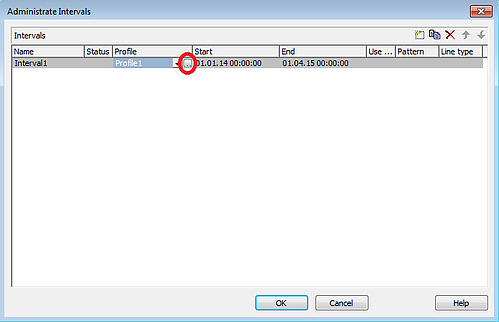

3. In this dialog you have to define the intervals for the calendar profile. Start and End specify the valid period for the interval that is based on the calendar profile.

VARCHART XGantt Property Calendar Profil

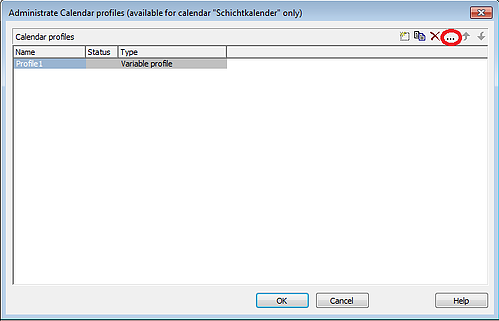

 4. You can edit the profile in the corresponding dialog which you open by clicking the Edit button.

VARCHART XGantt Property Edit Profil



5. In this dialog you create intervals the number of which corresponding with the number of shifts. Working times or non-working times with matching durations are assigned as profile to each interval. The duration’s unit is specified by the Time unit field and by Text  you can enter a text for each shift that will be displayed in the ribbon. By Pattern you may select a color for each interval.

Timescale_Shift_6



6. After having made all settings you have to add a ribbon to the timescale. For this, open the Specify Time Scale dialog by clicking the corresponding button on the Objects property page.

Timescale_Shift_7

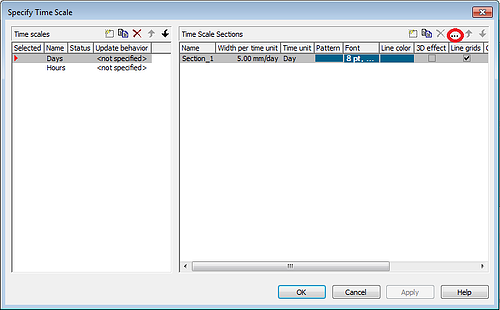

7. Click the Edit button in the dialog.

Timescale_Shift_8

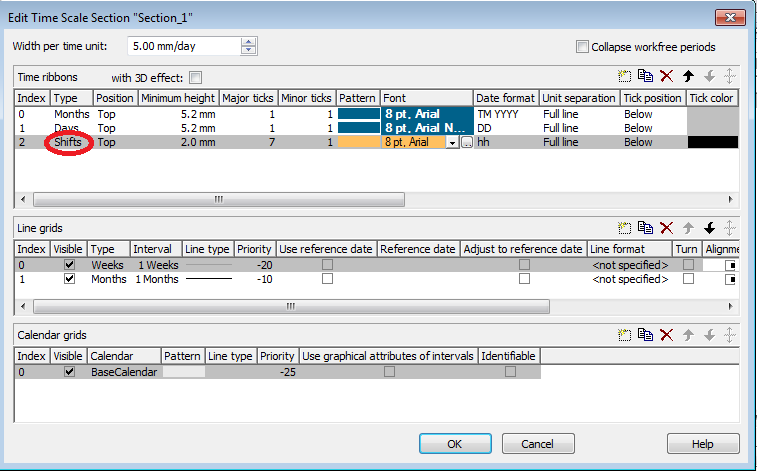

8. Now add a new ribbon with the following settings in the Edit Time Scale Section dialog:

Type:  Shifts

Pattern:  Select a color

Calendar (at the right end):  Enter a link to the shift calendar just created

Timescale_Shift_9
