Embedding A Gantt Chart Control Into A Servoy Application: A Customer Case

Posted by Martin Karlowitsch on Oct 31, 2011 11:05:00 PM

TMA Systems offers advanced Computerized Maintenance Management Systems (CMMS). The products and services are used by facility professionals around the world for customers in diverse fields such as education, healthcare, telecommunications, transportation, and manufacturing. The TMA application can be deployed locally or over the Internet as a web-based solution. TMAultra is the newest suite of products. Developed using Servoy, these products allow users to deploy on Windows, Linux, and Mac operating systems or to a web browser as pure html.

TMA makes use of Gantt charts within the application. TMA uses an IT2BE plugin which utilizes the VARCHART JGantt JavaBeans from NETRONIC.

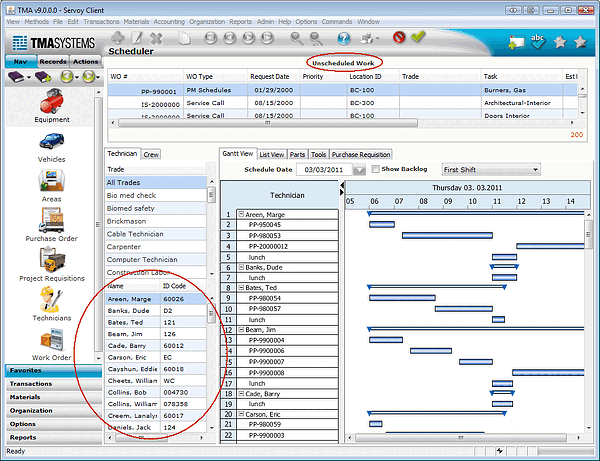

One of the solution’s core modules is the Scheduler, used to schedule and view a technician’s workload featuring a Gantt chart. The chart includes a tree representation of the schedules, grouped by technician. Unscheduled work is shown at the top with available technicians displayed on the left. The illustration below shows a daily Gantt chart.

Embedding A Gantt Chart Control Into A Servoy Application

When a technician is dragged and dropped on a work order, the technician’s schedule is updated and displayed as a task on the Gantt chart. One or more technicians can be scheduled to one or more work orders at once. The task can be easily rescheduled by dragging it to a new time or by dragging the right edge to update the duration.

Additional tabs are utilized to display differing elements and views of the scheduling process: a list view of information in the Gantt chart, parts, tools and purchase requisitions. The TMA Scheduler optionally includes a technician’s backlog items, allowing the user to view previously scheduled, but not yet completed, work orders. This allows the technician’s backlog to be rescheduled and considered when scheduling new work.

Users can control which schedules are presented on the Gantt chart using several selections, including date and shift.

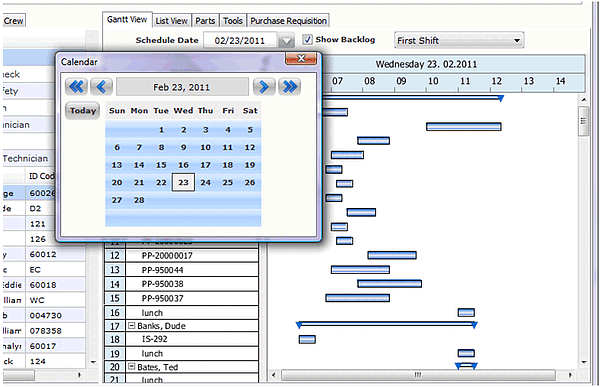

Selected Schedules on Gantt Chart by Data Picker

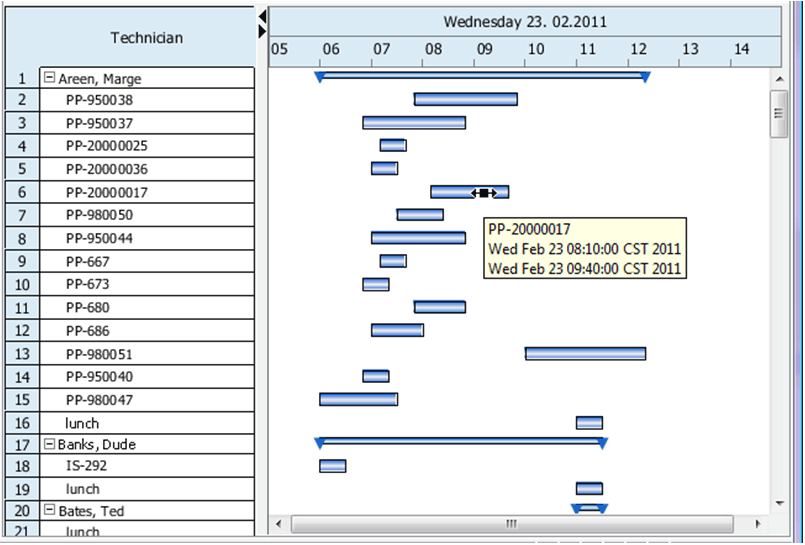

TMA incorporates many functions of VARCHART JGantt JavaBeans to visually assist the user with the scheduling process. The summary bar is used to indicate the earliest and latest work scheduled for the technician; the summary bar indicates when a technician has been overscheduled for the shift (displayed in red). The length of each task on the chart conveys the duration of the scheduled work, while task-level tool tips on the chart display details about each scheduled task.

Task-level tool tips on the Gantt chart for details about scheduled task

TMA makes use of context menus to offer general and task-specific functions, such as viewing work order details and un-scheduling the work order.

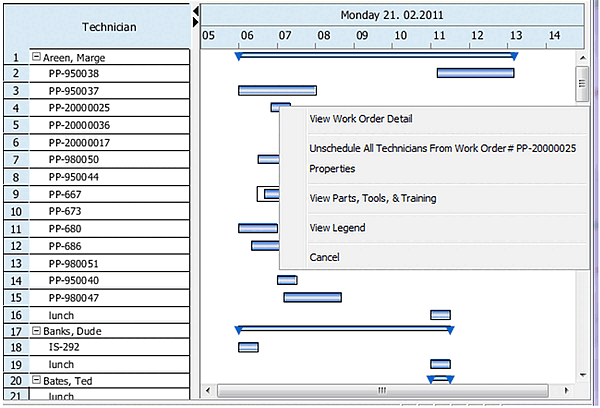

Context menus in Gantt charts to offer general and task-specific functions

The Properties option displays an interactive dialog allowing the user to modify information about the schedule and add comments.

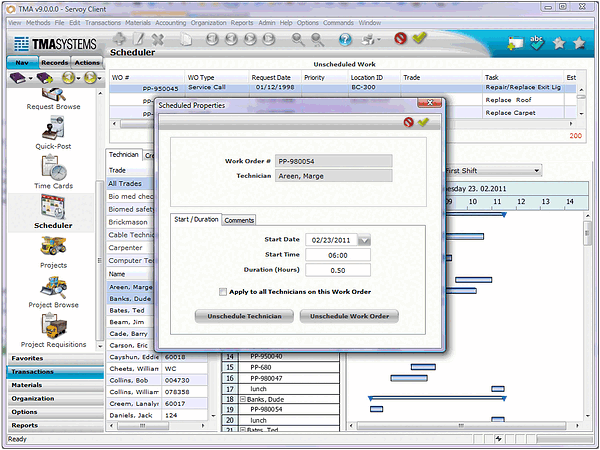

Properties option for interactive dialog in Gantt charts

"TMA developers worked in conjunction with the NETRONIC team to fine-tune and improve TMA’s experience with the VARCHART JGantt bean. TMA developers have found the bean to be easy-to-use, saving valuable development time in creating this module," says J T Young, Chief Technology Officer of TMA Systems.
