Meaningful Timescale in Gantt Diagram



Posted by Kerstin Sieckmann on Jun 5, 2014 11:10:53 AM

Gantt diagrams show tasks or operations in a time oriented way. Hence a timescale is a key feature of any Gantt diagram.

So what are important aspects of a timescale?

  • The resolution
  • The visualization of sections and stripes
  • The capability to dynamically change the resolution

In this blog post, you can learn more about the topic "timescale in Gantt diagram". We adress this topic by focusing a code sample of our Java Gantt control which is centered around timescale options and capabilities.

VARCHART JGantt is a Java Gantt control. In the just released version 3.1 a new Java code sample provides you with a plethora of timescale-related features and options for different resolutions and requirements. The sample is structured in four sections and lets you dive into the world of time scales.

TS_sample



Choose from predefined ribbon stripes

Depending on what time span your schedule is focused on – short-term scheduling on minute-basis, or long-term planning on a monthly basis – in the Gantt control there are more than 40 predefined time scale types for your choice.

TS_predefined



Smoothly zooming by Dynamic Timescales

Besides the predefined ribbon stripes, you can use a dynamic timescale in VARCHART JGantt. Dynamic timescales are important when you want to zoom into your Gantt diagram. Zooming by mouse wheel should be a common feature for a timescale, but when the ribbon stripes automatically changes subject to the resolution this is like the cherry on the cake. The dynamic time scale function uses a selection of the predefined ribbon stripes from seconds to years and VARCHART JGantt will select the best matching one according to the current resolution. The dynamic timescale is one of nine key features you should look for when evaluating a Java Gantt diagram control.

TS_resolution1

TS_resolution2

TS_resolution3

TS_resolution4

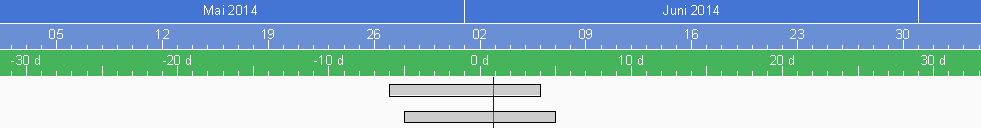

Define an individual timescale for a very individual scheduling application

Maybe none of the predefined ribbon stripes fits to your timescale requirement. For example you want to visualize minus values on the left side of the "time now" line. Choose one of the predefined ribbon stripes in VARCHART JGantt and modify it.

TS_individual



Split the timescale into sections

The past and the future – how to visualize best? Use two timescale sections, with two different colors and maybe two different resolutions. In VARCHART JGantt you can even define three sections and create a magnifying glass.

TS_sections



Want to play around with effects of timescales? Download the free trial version of VARCHART JGantt and choose the sample “EnhanceTimeScale”. We are curious about your feedback.
